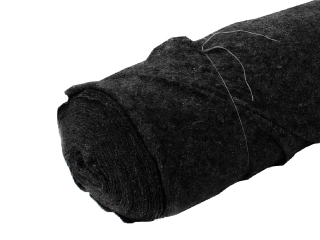

IZOLTECH H
Geotextile for foil protection and separation.
Geotextile for foil protection and separation.
IZOLTECH H is made from a 100% blend of regenerated synthetic fibers using the technology of punctures. It is used for protection and separation of ground waterproof insulation and as a filtering layer in roof gardens. Use IZOLTECH H wherever you need to protect the waterproofing film against undesirable effects.
Geotextile is produced with volumetric weights of 200–1300 g/m². We recommend using IZOLTECH H 300 (300 g/m²) to protect waterproofing and studded membrane.
Do not expose the roll of geotextile to unnecessary mechanical stress, such as bending or loading with sharp objects. Also protect them from rain and UV radiation. The rolls are wrapped in a plastic packaging.
GeoNETEX foil is suitable as an insulation component of:
| IZOLTECH H 200 | IZOLTECH H 300 | IZOLTECH H 500 | |
| Složení | 100% směs regenerovaných syntetických vláken |
100% směs regenerovaných syntetických vláken |
100% směs regenerovaných syntetických vláken |
| Barva | pestrá šedá | pestrá šedá | pestrá šedá |
| Hmotnost [g/m2] | 200 | 300 | 500 |
| Pevnost v tahu MD (EN ISO 10319) | 4,5 kN/m (-0,3kN/m) | 5,9 kN/m (-0,4 kN/m) | 12,2 kN/m (-0,7 kN/m) |
| Pevnost v tahu CMD (EN ISO 10319) | 5,4 kN/m (-0,4kN/m) | 9,2 kN/m (-0,7 kN/m) | 19,2 kN/m (-2,0 kN/m) |
| Tažnost MD (EN ISO 10319) | 65 % (+-5 %) | 90 % (+-5 %) | 80 % (+-5 %) |
| Tažnost CMD (EN ISO 10319) | 65 % (+-10 %) | 70 % (+-10 %) | 55 % (+-5 %) |
| Odolnost proti dynamickému protržení (EN ISO 13433) | 25 mm (+5 mm) | 15 mm (+5 mm) | 2 mm (+2 mm) |
| Odolnost proti statickému protržení (EN ISO 12236) |
1,0 kN/m (-0,1 kN/m) |
1,4 kN/m (-0,1 kN/m) |
2,8 kN/m (-0,1 kN/m) |
